 Post subject: Paddock Stand Bobbins
 Post Posted: Thu Feb 04, 2010 9:53 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
My electronic Scottoiler has arrived, and I'm still minded to run the oil line to the rear sprocket.

But this will mean that I can't use my cup type paddock stand, so I want to fit bobbins to the swing arm, and adaptor hooks to the paddock stand.

So, to fit the bobbins. Just drill straight through both skins of the swingarm, put a washer and nylock nut on the tyre side of the swing arm ? This is, after all, how the rear wheel spindle is mounted.

Or do something more elegant, just drill the one skin, and put a washer / alloy plate and nut inside the swing arm ?

Any thoughts, please ?

I'm currently making up a 'sharks fin', will be a good place to mount (and hide) the Scottoiler dispenser nib. Work in progress:



Top
 Profile

 Post Posted: Thu Feb 04, 2010 10:24 pm
Offline
Gunner Graham
User avatar

Joined: Sun Mar 05, 2006 9:38 pm
Posts: 8078
Location: Catterick, North Yorkshire
richard pitman wrote:
just drill the one skin, and put a washer / alloy plate and nut inside the swing arm ?



thats how i did mine Richard :D

_________________
370Steve


Top
 Profile

 Post subject:
 Post Posted: Thu Feb 04, 2010 10:39 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Cheers Steve.

Of course, if I'd used the Search function in the first place ...

http://hondahornet.co.uk/messageboard2/viewtopic.php?t=9687&highlight=bobbins

Your orange (track day) bike also has them ?

And what looks like a rear sprocket protector ?


Top
 Profile

 Post subject:
 Post Posted: Fri Feb 05, 2010 3:32 pm
Offline
Gunner Graham
User avatar

Joined: Sun Mar 05, 2006 9:38 pm
Posts: 8078
Location: Catterick, North Yorkshire
richard pitman wrote:
Your orange (track day) bike also has them ?


yes thats correct :angel

richard pitman wrote:
And what looks like a rear sprocket protector ?


thats also correct mate, just like you are making :D

_________________
370Steve


Top
 Profile

 Post subject:
 Post Posted: Sat Feb 06, 2010 8:53 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Got the sharkfin fitted this afternoon. Had a bit of fun getting the bike up high enough to be able to get under the swingarm with my drill, then more fun persuading the nuts and bolts into place. Stainless steel isn't magnetic, luckily found a mild steel nyloc amongst my bits, used a magnet on a stick to get that into place.

Now for the bobbins.

Steve, before I drill any holes, will I be OK mounting the bobbins in the same place as yours, 50mm or so in front of, and in line with, the rear spindle slot ?

I'd hate to fit bobbins, then find that the paddock stand got in the way of pulling out the rear wheel spindle . :Bang

Cheers,

Richard


Top
 Profile

 Post subject:
 Post Posted: Sat Feb 06, 2010 9:06 pm
Offline
Gunner Graham
User avatar

Joined: Sun Mar 05, 2006 9:38 pm
Posts: 8078
Location: Catterick, North Yorkshire
Richard, it should be fine, mine is fitted about 10mm lower than the spindle slot,(it looks higher than it realy is in the pic, due to the reflection from the polished arm!!) was a close fit getting the spindle in/out but managed it no probs 8o

_________________
370Steve


Top
 Profile

 Post subject:
 Post Posted: Fri Feb 12, 2010 7:49 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
I got my bobbins fitted today, also did a bit more work on fitting the Scott Eoiler.

I made up some plates to go inside and reinforce the swinging arm, bobins bolted internally through these. Changed my paddock stand cups for hooks, works a treat.

Eoiler fitted, control unit on dash, pump unit under seat (too bulky to sit by battery). Just need to run the pipework to the rear sprocket now, I intend to mount the nib behind my 'shark fin'.



Top
 Profile

 Post subject:
 Post Posted: Fri Feb 12, 2010 9:20 pm
Offline
Gunner Graham
User avatar

Joined: Sun Mar 05, 2006 9:38 pm
Posts: 8078
Location: Catterick, North Yorkshire
Nice bit of work there Richard :clap :clap :clap that oiler is a bit of bling :eek

_________________
370Steve


Top
 Profile

 Post subject:
 Post Posted: Fri Feb 12, 2010 9:59 pm
Offline
Hornet Warrior

Joined: Fri Jan 23, 2009 7:34 pm
Posts: 123
Location: Monifieth
very tidy , like the sharks fin and you've made a very tidy job of those bobbins , i think i'll put bobbins on my wife's hornet as the paddock stand under the swingarm is a bit of a faff , it always seems to get caught up in the chain

cheers


Top
 Profile

 Post subject:
 Post Posted: Sun Feb 21, 2010 12:49 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester

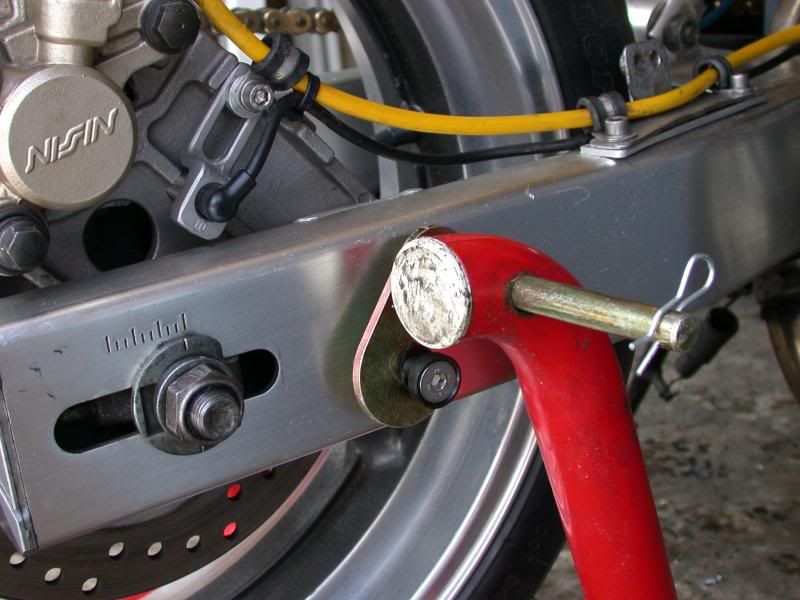

Bobbins in action:




Top
 Profile

 Post subject:
 Post Posted: Sun Feb 21, 2010 12:51 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Scott Eoiler fitted and working:





Top
 Profile

 Post subject:
 Post Posted: Sun Feb 21, 2010 3:25 pm
Offline
Hornet GOD!
User avatar

Joined: Sat Nov 08, 2008 1:19 am
Posts: 3824
Location: STOCKPORT AREA
now that sure is a very nice pice of work there richard :clap
wish i had the tools etc to make a shark fin :cry you should make more and flog em to us less fortunate .... id deffo buy one ... hint hint :)

_________________
The honda hornet ... A proper bike for everyone,everyday,everytime ... You will never regret owning one


Top
 Profile

 Post subject:
 Post Posted: Sun Feb 21, 2010 11:15 pm
Offline
Hornet Warrior

Joined: Sun Dec 16, 2007 11:55 pm
Posts: 141
Location: Cleveleys, Near Blackpool, UK
QUESTION!

Gonna do this to mine as i have a scottoiler now

How do you get the nut on the back of the bobbin so far into the swing arm?
Am i just being dense? (very likely)


Thanks. :)


Top
 Profile

 Post subject:
 Post Posted: Mon Feb 22, 2010 10:48 am
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
You need to drop the rear wheel spindle out, so that you can take the chain adjusters out of the end of the swing arm.

Then it's just a matter of sticking the internal nut into a ring spanner, use electical tape or grease to hold it. I used an M8 stainless bolt, which takes a 13mm stainless nyloc nut.


Top
 Profile

 Post subject:
 Post Posted: Mon Feb 22, 2010 11:10 am
Offline
Johnny English

Joined: Thu Jul 06, 2006 2:34 pm
Posts: 1034
Location: Brizzol
Neat job

Personally I wouldnt fit anything if it meant drilling the swing arm , but thats just me i guess :angel


Top
 Profile

 Post subject:
 Post Posted: Mon Feb 22, 2010 6:33 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
I must admit, I did wonder about the advisability of drilling the swinging arm.

However, if you think about it, Honda have already drilled a MUCH bigger hole / slot for the rear wheel spindle to pass through, so if anything was going to weaken it, that would.

I've made up backing plates that fit inside the swinging arm, to spread the load from the bobbins a bit.


Top
 Profile

 Post subject:
 Post Posted: Mon Feb 22, 2010 6:40 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Quote:
.wish i had the tools etc to make a shark fin you should make more and flog em to us less fortunate .


I'd be too worried about 'product liability' :eek

In any case, I'd be revealed as a fraud, when you discover that I've been taking photos of cardboard cutouts, painted silver, and stuck in place with blu tack. :lol

Proper jobs are available for around 30 quid.

http://www.intobikes.co.uk/popups/imageviewer.php?id=002897

Or buy a bit of aluminium for a tenner, no special tools were used. (Hacksaw, coping saw, 12mm drill bit, set of needle files)


Top
 Profile

 Post subject:
 Post Posted: Tue Feb 23, 2010 9:24 am
Offline
Johnny English

Joined: Thu Jul 06, 2006 2:34 pm
Posts: 1034
Location: Brizzol
I know what you about a hole for the rear spindle on the swing arm, and you done well to try and re-enforce from inside,

But im sure its how it was designed structurally and load bearing tested to be left as is , as " Mr HONDA designed it " , as we always say

Making other holes in it , is not really part of the structure design integrity of the load bearing part

Im sure it will be ok, and many , many have done this MOD over the years , , but personally its not for me, I just couldn’t live with that little element of doubt in the back of mind.


Its surprising if you google this one, the views that come back on it ,

For example

I was told by a bike engineering company that drilling the swing arm is a bad idea. That if you do have a spill, the spools will likely damage the swing arm as its hollow. The shop recommended drilling and taping aluminium "tabs" to weld on to the bottom of the swing arm. That way if something were to happen the swing arm would likely not suffer the spools being jammed into their hollow sides. And if the tabs were to be damaged the could be cut off and redone


Top
 Profile

 Post subject:
 Post Posted: Tue Feb 23, 2010 3:11 pm
Offline
Hornet Warrior
User avatar

Joined: Sun Feb 21, 2010 12:00 am
Posts: 222
Location: Surrey/London
forgive me for being a little slow on his one... but what is the 'sharks fin' for?


Top
 Profile

 Post subject:
 Post Posted: Tue Feb 23, 2010 8:52 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Sprocket protector is the 'proper' term.

If you fall off, it is supposed to stop the sprocket acting like a buzz saw on parts of your body, as you and the bike slide down the road together.

Think they are mandatory in some classes of racing.

Richard


Top
 Profile

 Post subject: Re:
 Post Posted: Sun Aug 15, 2010 10:56 am
Offline
Hornet Warrior

Joined: Tue Sep 08, 2009 8:40 pm
Posts: 115
richard pitman wrote:
I must admit, I did wonder about the advisability of drilling the swinging arm.

However, if you think about it, Honda have already drilled a MUCH bigger hole / slot for the rear wheel spindle to pass through, so if anything was going to weaken it, that would.

I've made up backing plates that fit inside the swinging arm, to spread the load from the bobbins a bit.



Hi there,

im just fitting a scotoiler myself and dont want really to reverse the spindle in order to mount the oil dispenser.

i came a cross this post and thought your idea of hifding the dispenser behind the fin was a good idea.
(i can make one up easy enough as i have access to sheelt metal tooling)

one question i had was how did you mount the sharks fin to the swing arm?
im assuming you drilled it in the same way you did the paddock stand bobbins??

have you got a pic you could post up?

thanks
rob


Top
 Profile

 Post Posted: Sun Aug 15, 2010 11:45 am
Offline
Newbie
User avatar

Joined: Mon Jun 28, 2010 8:43 pm
Posts: 17
Location: Gloucestershire
Richard,

Thanks for taking the time to post pictures of your mods. :clap I am considering buying a Scottoiler for my 600 and I was considering the front sprocket feed option as it is far neater than the standard Scottoiler installation in the installation guide, and doesn't affect paddock stand use.

Having seen your sharkfin and bobbins mod I'm now considering doing something similar as I think it will probably give slightly better lubrication than the front sprocket feed method.

With regard to drilling the swingarm, I can see why people might not want to do this but sometimes these things just need a little engineering common sense: a couple of small holes for paddock stand bobbins are unlikely to compromise the strength of a substantial aluminium alloy box section.

From an engineering point of view, the area that Richard has drilled is not that highly stressed when compared to other areas where bending loads are more concentrated. I'm not saying that you SHOULD drill holes in your swingarm if you are worried about it but if you do want to fit bobbins, you could do far worse than what Richard has done.

:)


Top
 Profile

 Post Posted: Sun Aug 15, 2010 8:39 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Whym thank you !

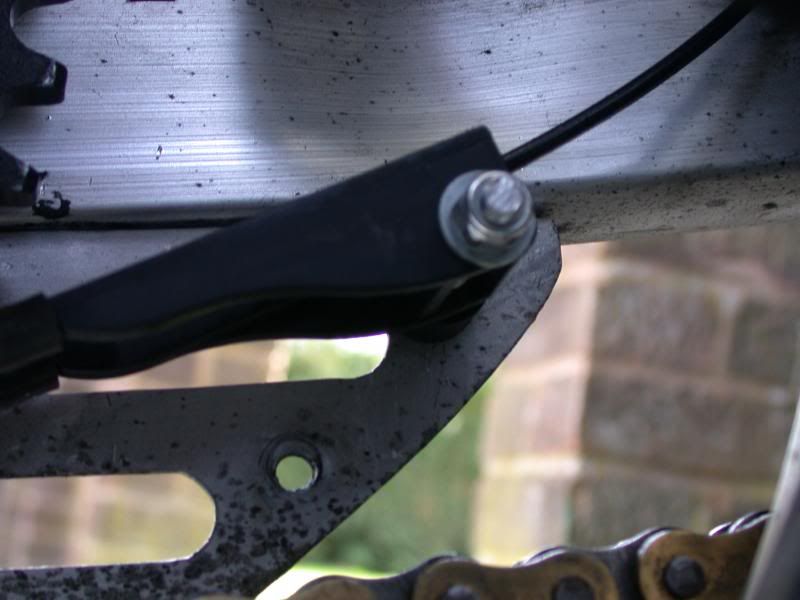

I soon modded that setup. The standard single sided injector was a pain, wouldn't stay lined up correctly, either sprayed oil into mid air, or got torn off. I've since fitted the dual injector, again using the shark fin to mount it to, works a treat.

Crap photo, but you get the idea:


_________________
And then one day you find
Ten years have got behind you
No one told you when to run
You missed the starting gun


Top
 Profile

 Post Posted: Sun Aug 15, 2010 8:53 pm
Offline
True Horneteer

Joined: Sat Apr 03, 2010 1:46 pm
Posts: 1887
Location: South wales
i always wondered how to fit bobins. i shall order some and a 8mm drill bit :D i love the 'sharkfin' tho :angel

_________________


Top
 Profile

 Post Posted: Mon Aug 16, 2010 1:32 pm
Offline
Hornet Warrior

Joined: Tue Sep 08, 2009 8:40 pm
Posts: 115
nice one,

thanks for the pic,

im goign to make something up this week and see how it goes.

one more question....
how did you get the swingarm up high enough to drill out the hole to fit the shark fin?

Thanks


Top
 Profile

 Post Posted: Mon Aug 16, 2010 2:03 pm
Offline
Hornet Warrior
User avatar

Joined: Fri Jun 11, 2010 7:51 pm
Posts: 376
Location: Whitley Bay
Anyone unsure / not wanting to drill the swing arm , something like this would be the way to go I would say

http://www.deprettomoto.com/item_detail ... rca_moto=1

_________________
Ah , that's what was loose ....


Top
 Profile

 Post Posted: Mon Aug 16, 2010 7:51 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Have to agree, those DPM parts do look nice.

Getting it high enough to get the cordless drill under ?

Can't remember exactly, but have a nasty feeing it involved a trolley jack and stacks of bricks :eek

_________________
And then one day you find
Ten years have got behind you
No one told you when to run
You missed the starting gun


Top
 Profile

 Post Posted: Mon Aug 16, 2010 8:05 pm
Offline
True Horneteer

Joined: Sat Apr 03, 2010 1:46 pm
Posts: 1887
Location: South wales
:D i think bottle jack on the downpipes is a easy fix and someone to hold it steady :D

aslo F u Vis got me wanting sexy bits for my bike now :(


http://www.deprettomoto.com/item_detail ... rca_moto=1
<3
and the rearsets and the argh!!

_________________


Top
 Profile

 Post Posted: Tue Aug 17, 2010 1:05 pm
Offline
True Horneteer

Joined: Mon Jul 12, 2010 7:55 pm
Posts: 1546
Location: Bexleyheath, Kent
I think I'm actually in love -
http://www.deprettomoto.com/item_detail ... rca_moto=1
If I now have no money for the next 10 years, I'll be blaming Vis for showing this site :P

_________________
2001 'S' Hornet, with a whole bunch of stuff :)


Top
 Profile

 Post Posted: Tue Aug 17, 2010 3:39 pm
Offline
Jesus ! Get a life !
User avatar

Joined: Sun Mar 07, 2010 8:01 am
Posts: 2626
Location: Hartlepool
I'm loving the translations into English!

"The working from the solid renders many special these adapters for handlebar edges"

I actually know some people who talk like that! :D :D :D

_________________


Top
 Profile

 Post Posted: Tue Aug 17, 2010 3:49 pm
Offline
Hornet Warrior
User avatar

Joined: Fri Jun 11, 2010 7:51 pm
Posts: 376
Location: Whitley Bay
Dont blame me blame adam he posted the link to this company I mearly showed probably the cheapest item :angel :rollin

My fav translation ...

This article offers the possibility to close ulteriorly the semihandle-bars without blink on the tank with the hands.

_________________
Ah , that's what was loose ....


Top
 Profile

 Post Posted: Thu Aug 19, 2010 10:48 am
Offline
Newbie

Joined: Sat Jul 17, 2010 6:40 pm
Posts: 2
If you're worried about fitting bobbins for a paddock stand, then you could consider using an Abba Stand.


Top
 Profile

 Post Posted: Fri Aug 20, 2010 3:35 pm
Offline
Hornet Warrior
User avatar

Joined: Tue May 12, 2009 6:30 pm
Posts: 108
looks good man! what kind of rearsets do you have on there? I noticed the honda wing for the heel plate.

_________________
2006 599

Vortex 14/45 Sprockets w/ 520 conversion, Micron Carbon Fiber Stubby, BMC Filter, Dynojet,
SWATT clip-ons, Pazzo levers, Driven Gel Grips, Grab-rail caps, bar end mirror



Top
 Profile

 Post Posted: Fri Aug 20, 2010 5:14 pm
Offline
Victor Meldrew
User avatar

Joined: Thu Feb 27, 2003 10:51 pm
Posts: 4017
Location: Worcester
Quote:
what kind of rearsets do you have on there? I noticed the honda wing for the heel plate.


Gilles rearsets, with homemade (3mm aluminium) heel plates.

The standard carbon fibre ones are far too flimsy and brittle, very easily damaged.

_________________
And then one day you find
Ten years have got behind you
No one told you when to run
You missed the starting gun


Top
 Profile

Display posts from previous:  Sort by

Post new topic Reply to topic  [ 34 posts ]

Board index » Hornet 600/599 » General chat


Who is online

Users browsing this forum: No registered users and 0 guests





You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Search for:
Jump to:
cron
